Compact vacuum oven Vacutherm™ VT 6025, with inert gas connection, digital pressure display, and recorder connection Additional Photos

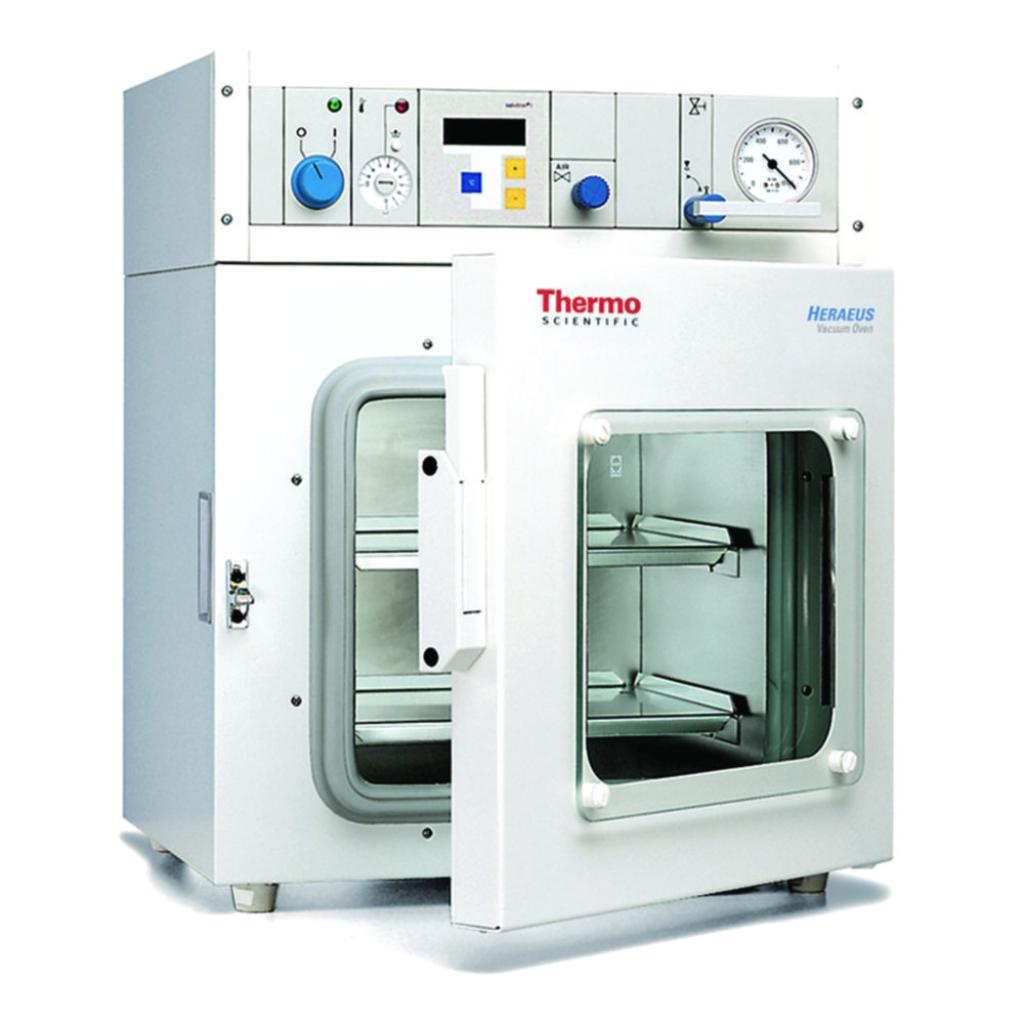

Compact vacuum oven Vacutherm™ VT 6025, with inert gas connection, digital pressure display, and recorder connection

  • With stainless steel vacuum ball valve, inert gas connection, digital pressure display, recorder connection, overpressure safety and precision valve, seamlessly welded chamber, and DN25 access port
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Availability Quantity in packaging Price excluding VAT
Obrázek produktové varianty VT 6025
Kód BDL: 9883483
Code Producer: 51014553
Availability
Usual delivery 4 weeks
Quantity in packaging
1
314600 Kč
283140 Kč with BDL plus

Technical Specifications

Depth int. 307 mm mm
Ext. dim. (WxDxH) 480 x 450 x 600 mm
Ext. depth 450 mm mm
Ext. height 600 mm mm
Ext. width 480 mm mm
Power supply frequency 50/60 Hz Hz
Height int. 275 mm mm
Int. Dim. (WxDxH) 300 x 307 x 275 mm
Int. width 300 mm mm
IP code IP 20
Max. no. of inserts 4
Max. temperature 200 °C °C
Max. voltage 230 V V AC
Min. temperature +15 °C °C
Nominal capacity 25 l ml
Power supply 230 V, 50/60 Hz Hz
Rated capacity 1300 W W
Temperature addition RT
Temperature RT+15 ... 200 °C
Type VT 6025
Type of auxiliary energy Mains connection
Ultimate vacuum 0.01 mbar mbar
Weight 58 kg g
