Cyclone Mill TWISTER Additional Photos

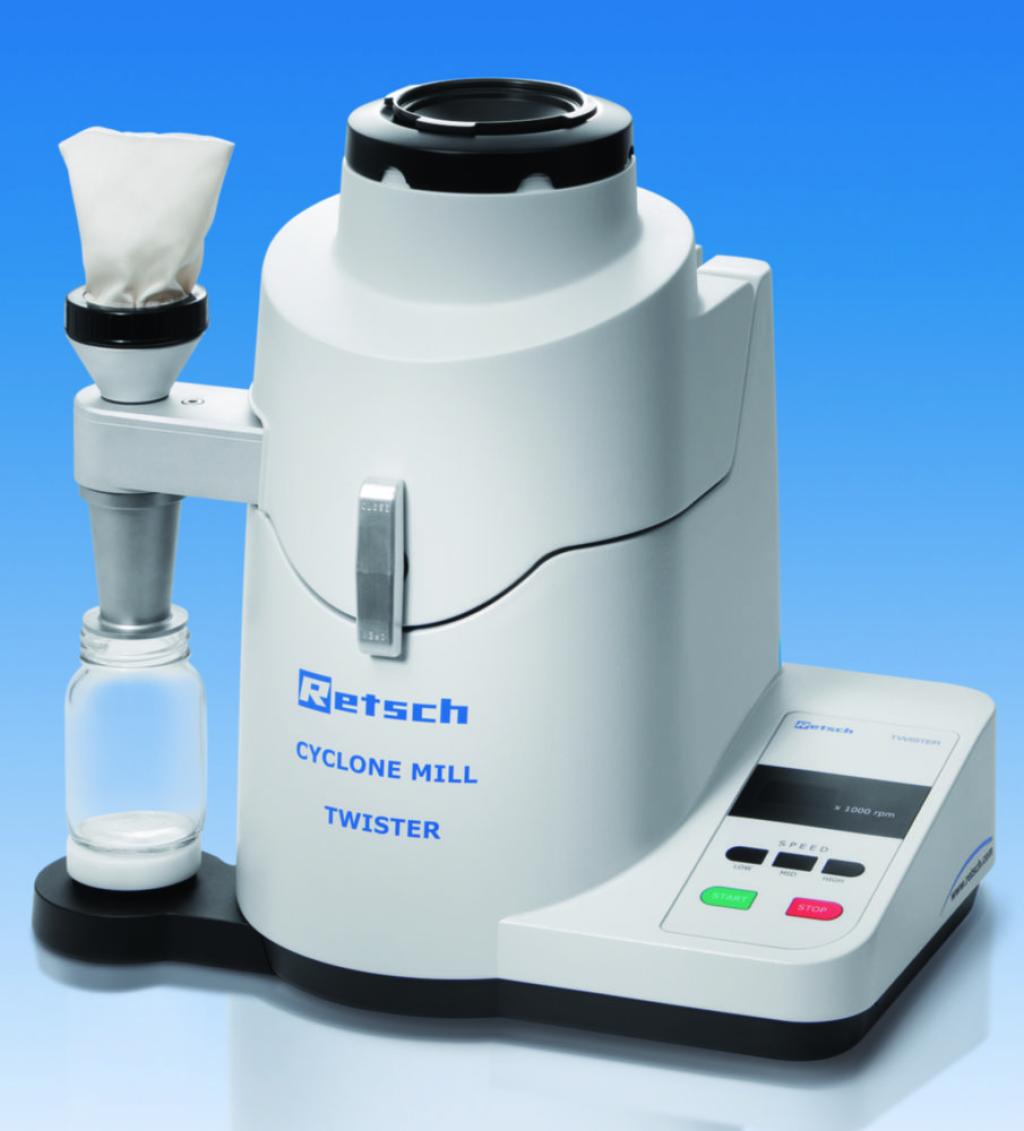

Cyclone Mill TWISTER

Application:
The Cyclone Mill TWISTER is specially designed for the processing of foods and feeds for subsequent NIR analysis. The optimized form of rotor and grinding chamber generates an air jet which carries the ground sample through the integrated cyclone into the sample bottle. The air jet prevents the material from heating up, thus preserving the moisture content.

Features:
  • Ideal for grinding feeds, grains, forage and other similar products
  • 3 controlled speeds
  • Cyclone separator with 250 ml collecting bottle for quick extraction of sample
  • No cross contamination thanks to easy cleaning
  • Convenient operating panel
  • Professional industrial design with long lifetime

Specifications:
  • Feed size: <10mm
  • Final fineness: < 250 µm
  • Batch size / feed quantity: <250 ml
  • Speed setting: 10000 / 12000 / 14000 rpm
  • Dimensions (W x D x H): 449 x 283 x 427mm
  • Weight: approx. 14kg
  • Power supply: 230 V, 50/60 Hz

Supplied with:
Cyclone Mill TWISTER complete with rotor, grinding ring, sieve inserts (1.0 mm and 2.0 mm), 10 sample bottles 250ml
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Availability Quantity in packaging Price excluding VAT
Obrázek produktové varianty [LLG] Cyclone Mill TWISTER
Kód BDL: 6256514
Code Producer: 20.831.0001
Availability
Usual delivery 7 weeks
Quantity in packaging
1
190320 Kč
184534 Kč with BDL plus

Technical Specifications

Depth 283 mm mm
Dimensions (WxDxH) 449 x 283 x 427 mm
Power supply frequency 50/60 Hz Hz
Height 427 mm mm
Max. feed particle size 10 mm mm
Max. speed 14000 1/min 1/min
Max. voltage 230 V&middot;AC V AC
Min. speed 10000 1/min 1/min
Nominal volume collecting vessel 250 ml ml
Plug type EU
Power supply 230 V·AC, 50/60 Hz Hz
Rated capacity 900 W W
Speed 10,000 ... 14000 1/min
Type of auxiliary energy Mains connection
Weight 14 kg g
Width 449 mm mm

Photos

Cyclone Mill TWISTER
