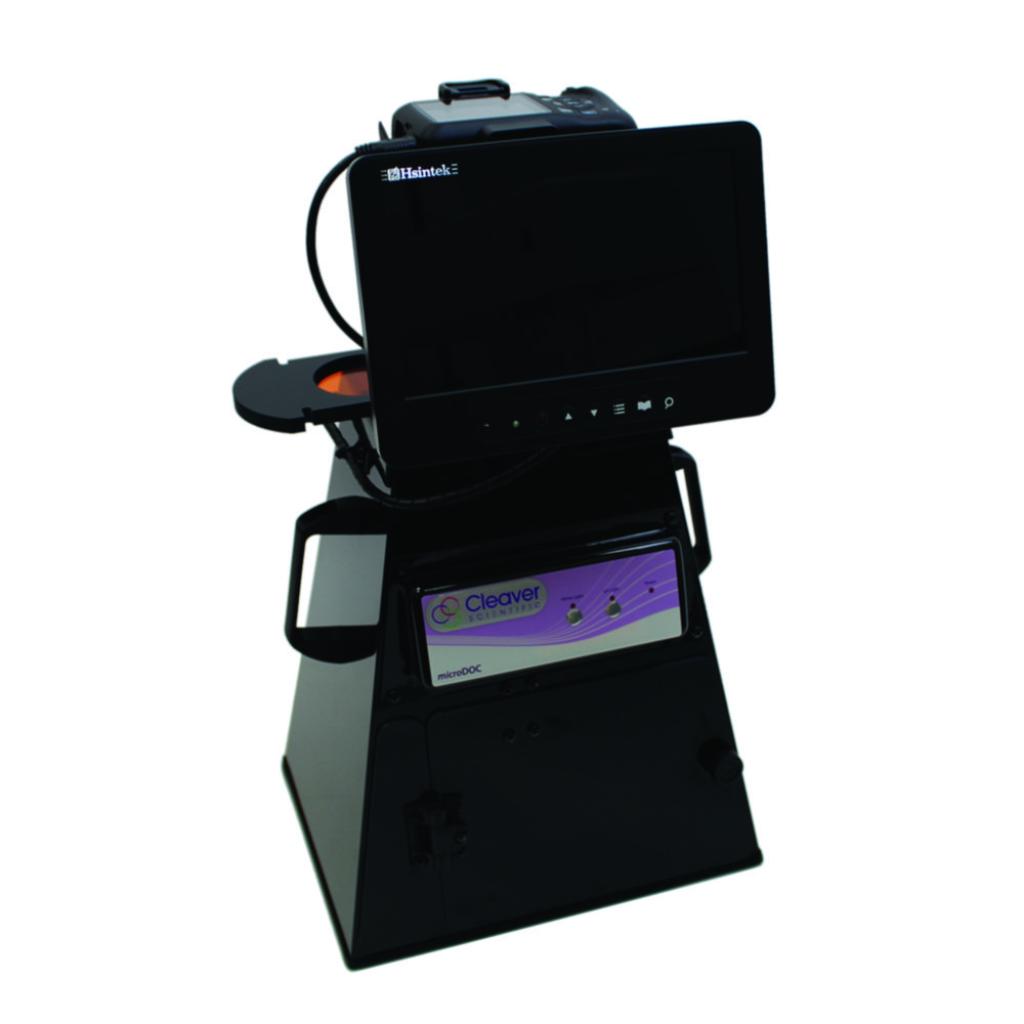

    Gel documentation system microDOC with UV-Transilluminator

    Recently upgraded with a new 24.1 megapixel digital CMOS camera to guarantee superb resolution, the microDOC is the researcher's choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8" TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured clearly and easily. The system is computer-free and supplied with an 8 GB storage card and 58 mm ethidium bromide filter as standard, while an optional SYBR filter is also available. Files are saved onto the storage card in RAW, TIFF-RGB and JPEG formats and may be transferred to computer for analysis with the highly recommended TotalLab™ 1D software.

    microDOC BASIC: The microDOC BASIC is a simple low-cost system comprising a lift-off dark room hood and 24.1 megapixel digital camera, through which the gel is viewed directly. This system can be supplied with optional TotalLab™ 1D Analysis Software and any one of the 21 x 21cm transilluminators (please enquire).

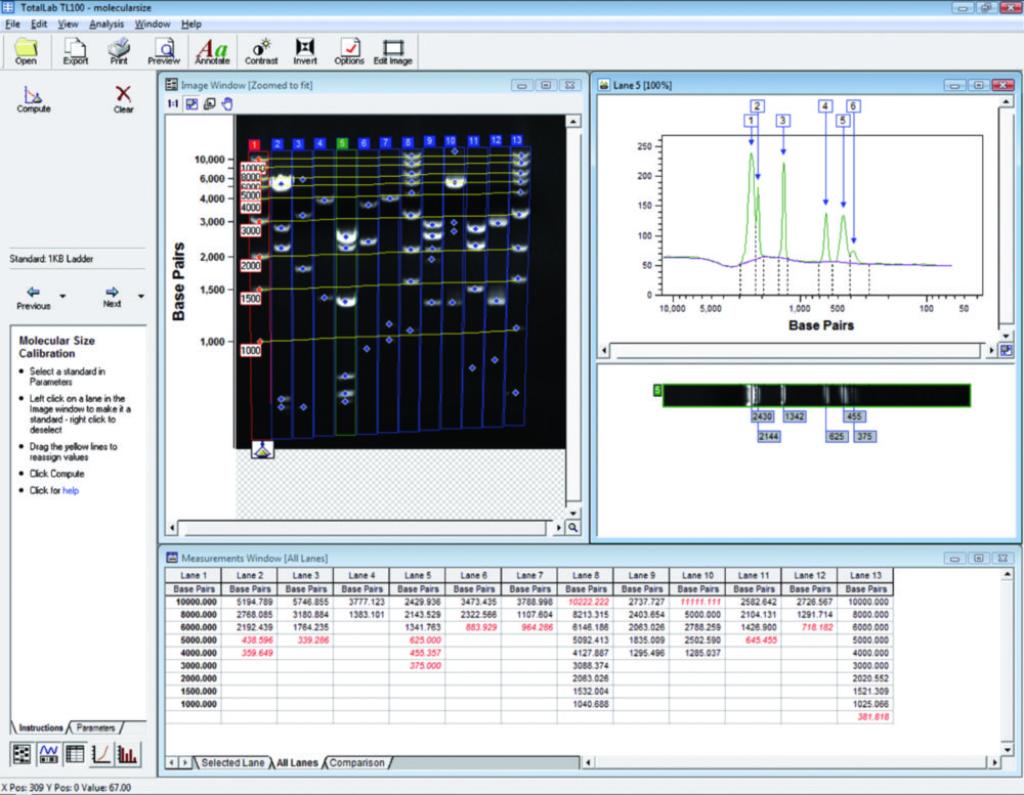

    TotalLab™ 1D software: is supplied only as part of a complete package with each of the microDOC and transilluminator options. Its main functions include: lane creation, background subtraction, band detection, profile deconvolution, and molecular size, pI and quantity calibration. More sophisticated standalone software options are available for 1D applications that require band matching, array, colony counting and image ToolBox functionalities.

    Camera:
    • File Format Design rule for Camera File system, DPOF (version 1.1) compliant
    • Focus-Area Selection AF mode and manual focus are available
    • Hood
    • Multi-Power Source for camera, Inner light lamp, TFT screen (excludes MicroDOC Basic/1D models)
    • Safety Door Switch Automatically disconnects UV transilluminator, while opening the chamber door during operation
    • with Video and Audio Input
    Select Variant
    Producer
    • LLG
    Categories

    Product Variants

    Name BDL Code and Manufacturer Code
    Description
    		Availability Quantity in packaging Price excluding VAT
    Obrázek produktové varianty Compact Gel documentation system
    Kód BDL: 6231823
    Code Producer: CSL-MICRODOC
    Description
    Compact Gel documentation system
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    111480 Kč
    100332 Kč with BDL plus
    Obrázek produktové varianty microDOC with UV-Transilluminator 312/365 nm*
    Kód BDL: 7971057
    Code Producer: CSL-MDOCUV312/36
    Description
    microDOC with UV-Transilluminator 312/365 nm*
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    181633 Kč
    163470 Kč with BDL plus
    Obrázek produktové varianty microDOC with UV-Transilluminator 312nm
    Kód BDL: 9584755
    Code Producer: CSL-MDOCUV312
    Description
    microDOC with UV-Transilluminator 312nm
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    179091 Kč
    161182 Kč with BDL plus
    Obrázek produktové varianty microDOC with UV-Transilluminator 254/312nm
    Kód BDL: 9584756
    Code Producer: CSLMDOCUV254/312
    Description
    microDOC with UV-Transilluminator 254/312nm
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    172526 Kč
    155273 Kč with BDL plus
    Obrázek produktové varianty microDOC with UV-Transilluminator 254/365nm
    Kód BDL: 9584757
    Code Producer: CSLMDOCUV254/365
    Description
    microDOC with UV-Transilluminator 254/365nm
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    178118 Kč
    160306 Kč with BDL plus
    Obrázek produktové varianty microDOC basic system with lift-off dark room hood and camera only
    Kód BDL: 9584758
    Code Producer: CSL-MDOCBASIC
    Description
    microDOC basic system with lift-off dark room hood and camera only
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    72930 Kč
    65637 Kč with BDL plus
    Obrázek produktové varianty Compact Gel documentation system*
    Kód BDL: 9584759
    Code Producer: CSL-MICRODOC1D
    Description
    Compact Gel documentation system*
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    142917 Kč
    128625 Kč with BDL plus
    Obrázek produktové varianty microDOC with UV-Transilluminator 312nm*
    Kód BDL: 9584760
    Code Producer: CSL-MDOCUV3121D
    Description
    microDOC with UV-Transilluminator 312nm*
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    204038 Kč
    183634 Kč with BDL plus
    Obrázek produktové varianty microDOC with UV-Transilluminator 254/312nm*
    Kód BDL: 9584761
    Code Producer: CSL-MDOCUV2541D
    Description
    microDOC with UV-Transilluminator 254/312nm*
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    209828 Kč
    188845 Kč with BDL plus
    Obrázek produktové varianty microDOC with UV-Transilluminator 254/365nm*
    Kód BDL: 9584762
    Code Producer: CSL-MDOCUV254/36
    Description
    microDOC with UV-Transilluminator 254/365nm*
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    206726 Kč
    186053 Kč with BDL plus
    Obrázek produktové varianty microDOC basic system with lift-off dark room hood and camera only*
    Kód BDL: 9584763
    Code Producer: CSL-MDOCBASIC1D
    Description
    microDOC basic system with lift-off dark room hood and camera only*
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    101605 Kč
    91445 Kč with BDL plus
