Inverted Microscope for advanced applications series AE31E, Trinocular LED fluorescence Additional Photos

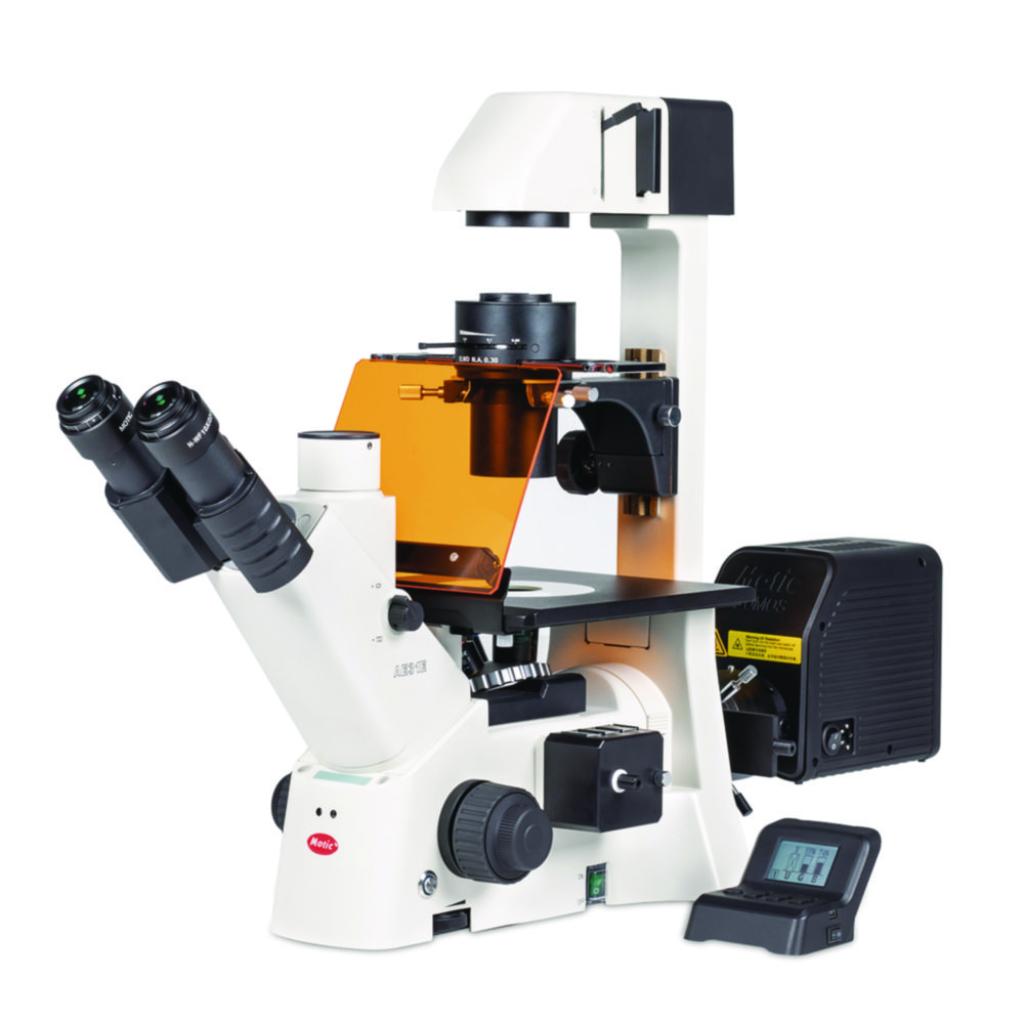

Inverted Microscope for advanced applications series AE31E, Trinocular LED fluorescence

Scope of supply: microscope, Epi-Fluorescence attachment with 3 position fluorescence filter cassette, LUMOS FL LED high-performance light source, dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Availability Quantity in packaging Price excluding VAT
Obrázek produktové varianty [LLG] Inverted Microscope for advanced applications series AE31E, Trinocular LED fluorescence
Kód BDL: 6325390
Code Producer: 1200100200576
Availability
Usual delivery 13 weeks
Quantity in packaging
1
259870 Kč
233883 Kč with BDL plus

Technical Specifications

Condenser ELWD N.A. 0.3
Depth 556 mm mm
Depth stage 239 mm mm
Dimensions (WxDxH) 200 x 556 x 529 mm
Height 529 mm mm
Inclination angle tube 45°
Interpupillary distance 48 ... 75 mm
Light type Halogen
Magnification eyepieces WF10x/22 mm
Magnification objectives 4x, 10x, 20x, 40x
Max. interpupillary distance 75 mm mm
Max. voltage 240 V V AC
Min. interpupillary distance 48 mm mm
Min. voltage 100 V V
Power supply 100 ... 240 V
Revolving nosepiece 5-fold
Stage (WxD) 200 x 239 mm
Tube Trinocular
Type of auxiliary energy Mains connection
Type of illumination Transmitted illumination
Weight 11.7 kg g
Width 200 mm mm
Width stage 200 mm mm

Photos

Inverted Microscope for advanced applications series AE31E, Trinocular LED fluorescence
