Moisture Analyser MA35 Additional Photos

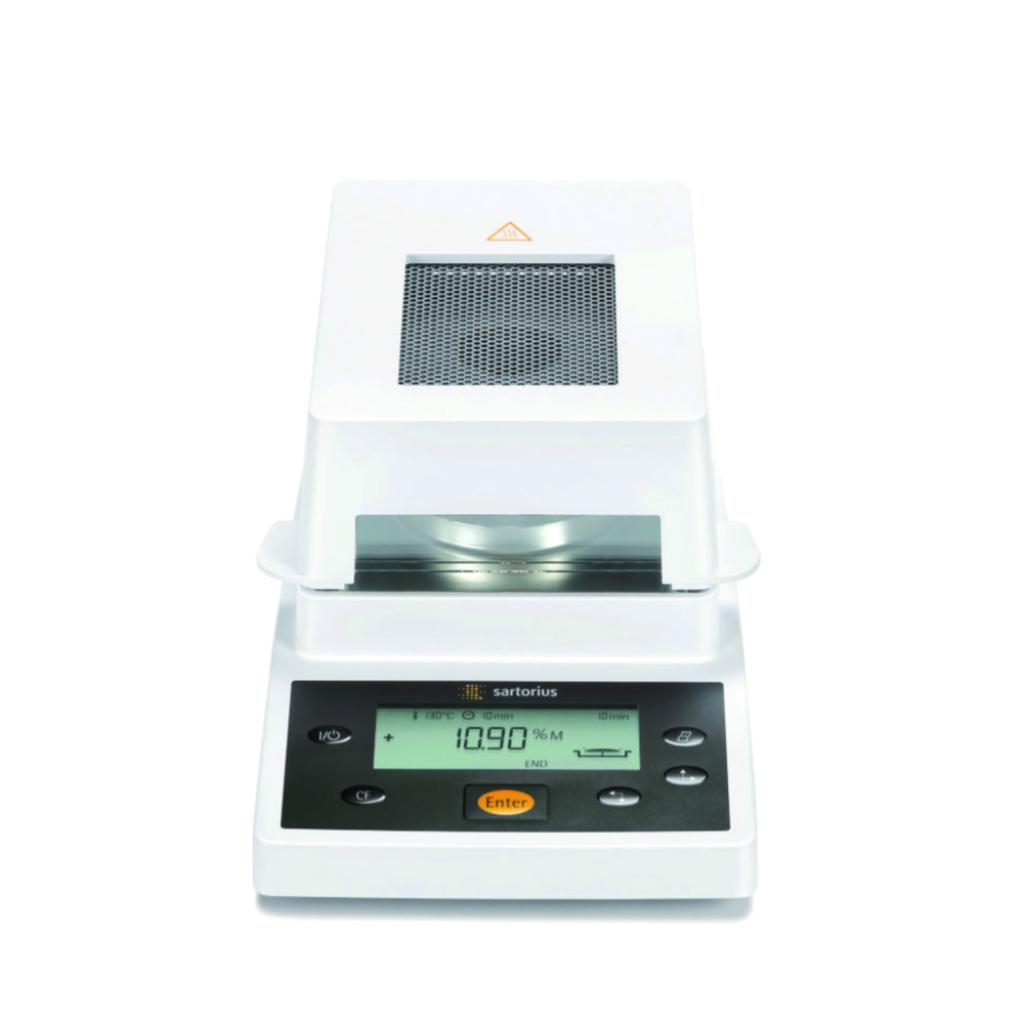

Moisture Analyser MA35

  • Fully automatic heating of a sample by two powerful metal tubular-shaped heating elements (also called dark radiators)
  • Particularly simple operator guidance using self-explanatory pictograms
  • Sample quantity 5-15g
  • % moisture content, % dry weight , ATRO value, g residue, mg weight loss
  • Shutoff criteria (optional): fully automatic, timer setting (0.1-99min.), manual
  • Access to sample chamber through hinged cover with large opening angle
  • 1 program saved in a non-volatile memory (freely selectable parameters)
  • Printout using an optional, external printer (Cat. No. 6.238 838)
  • Fixed standard configuration GLP report for measuring results, calibration, adjustment (5 languages selectable)
  • External calibration using optional weight sets
  • Data interface RS232 C-S/V24-V28, 7 data bits (ASCII) 1 parity bit
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Availability Quantity in packaging Price excluding VAT
Obrázek produktové varianty [LLG] Moisture Analyser MA35
Kód BDL: 6272569
Code Producer: MA35M-230N
Availability
4 pcs
Usual delivery 5 business days
Quantity in packaging
1
76440 Kč
68796 Kč with BDL plus

Technical Specifications

Depth 366 mm mm
Ø sample dishes 90 mm mm
Dimensions (WxDxH) 224 x 366 x 191 mm
Power supply frequency 50/60 Hz Hz
Heating element Metal
Height 191 mm mm
Humidity 2 ... 99 %
Max. humidity 99 % %
Max. load 35 g g
Max. temperature 160 °C °C
Max. voltage 230 V V AC
Min. humidity 2 % %
Min. temperature 40 °C °C
Plug type EU
Power supply 230 V, 50/60 Hz Hz
Readability 1 mg
Temperature 40 ... 160 °C
Type of auxiliary energy Mains connection
Weight 5.8 kg g
Width 224 mm mm
