Moisture analyser DAB 100-3 Additional Photos

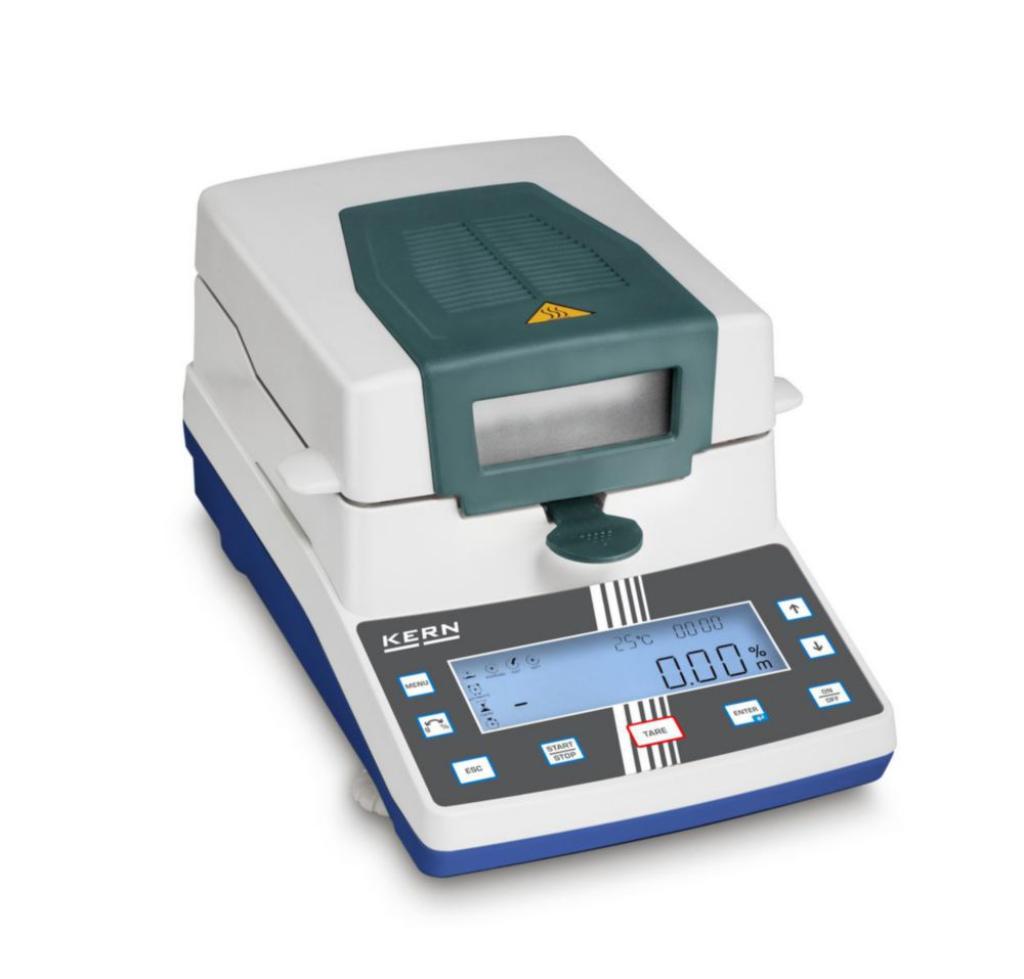

Moisture analyser DAB 100-3

Moisture analyser with user-friendly graphics display and 15 memories for drying programs.

  • Halogen quartz glass heater 400 W

  • Backlit LCD display, digit height 14 mm

  • Display of: Drying process active, Active heating profile, Active switch-off criteria, Previous drying time, Current temperature, Moisture display in %, Interim result in moisture-%

  • Observation window above the sample, useful during initial setting

  • Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out

  • The last value measured remains on the display until it is replaced by a new measurement

  • 50 sample plates included
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Availability Quantity in packaging Price excluding VAT
Obrázek produktové varianty [LLG] Moisture analyser DAB 100-3
Kód BDL: 6281836
Code Producer: DAB 100-3
Availability
4 pcs
Usual delivery 5 business days
Quantity in packaging
1
32500 Kč
29250 Kč with BDL plus

Technical Specifications

Depth 365 mm mm
Ø sample dishes 92 mm mm
Dimensions (WxDxH) 240 x 365 x 180 mm
Power supply frequency 50 Hz Hz
Heating element Halogen
Height 180 mm mm
Humidity 0 ... 100 %
Max. humidity 100 % %
Max. load 110 g g
Max. temperature 199 °C °C
Max. voltage 230 V V AC
Min. humidity 0 % %
Min. temperature 40 °C °C
Plug type EU
Power supply 230 V, 50 Hz Hz
Readability 0,001 g
Reproducibility 0,001 g mg
Temperature 40 ... 199 °C
Type of auxiliary energy Mains connection
Weight 4.8 kg g
Width 240 mm mm
