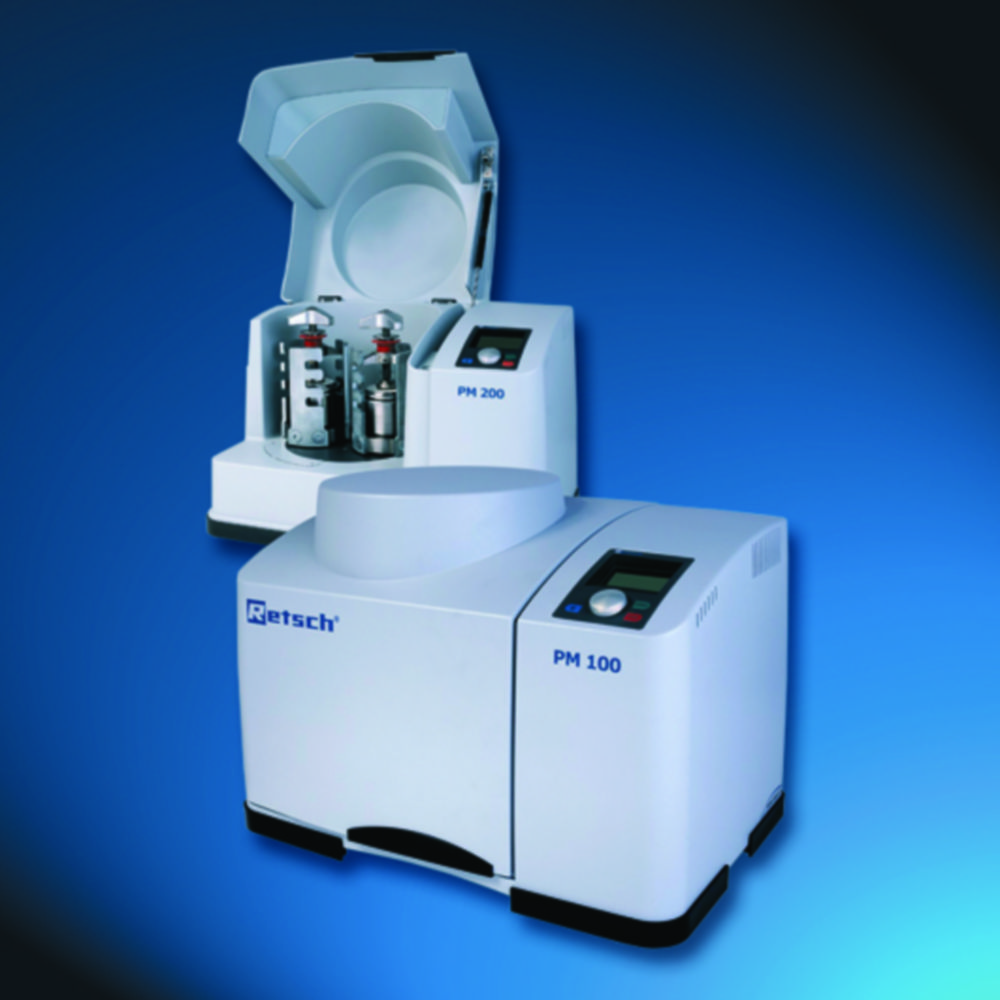

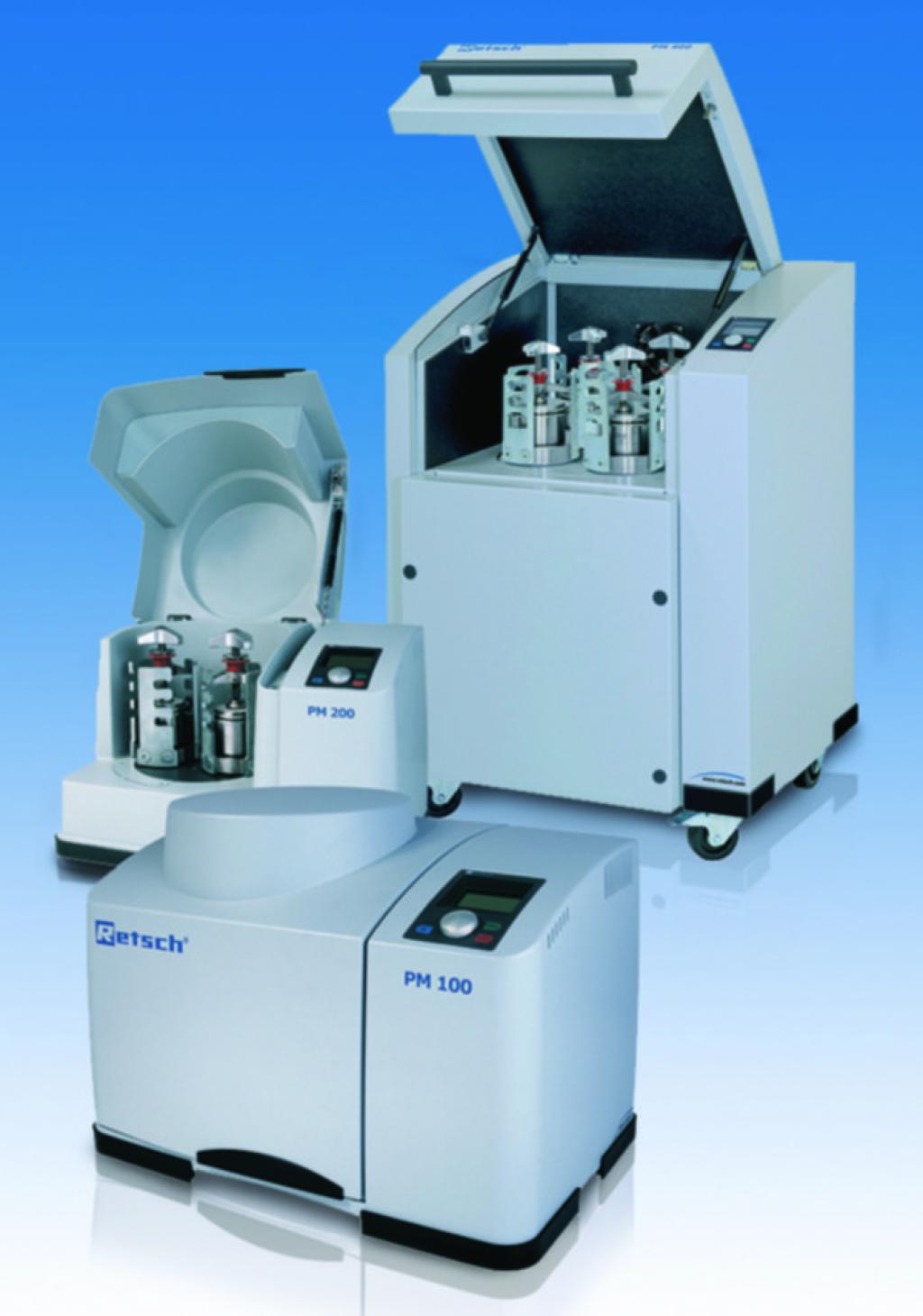

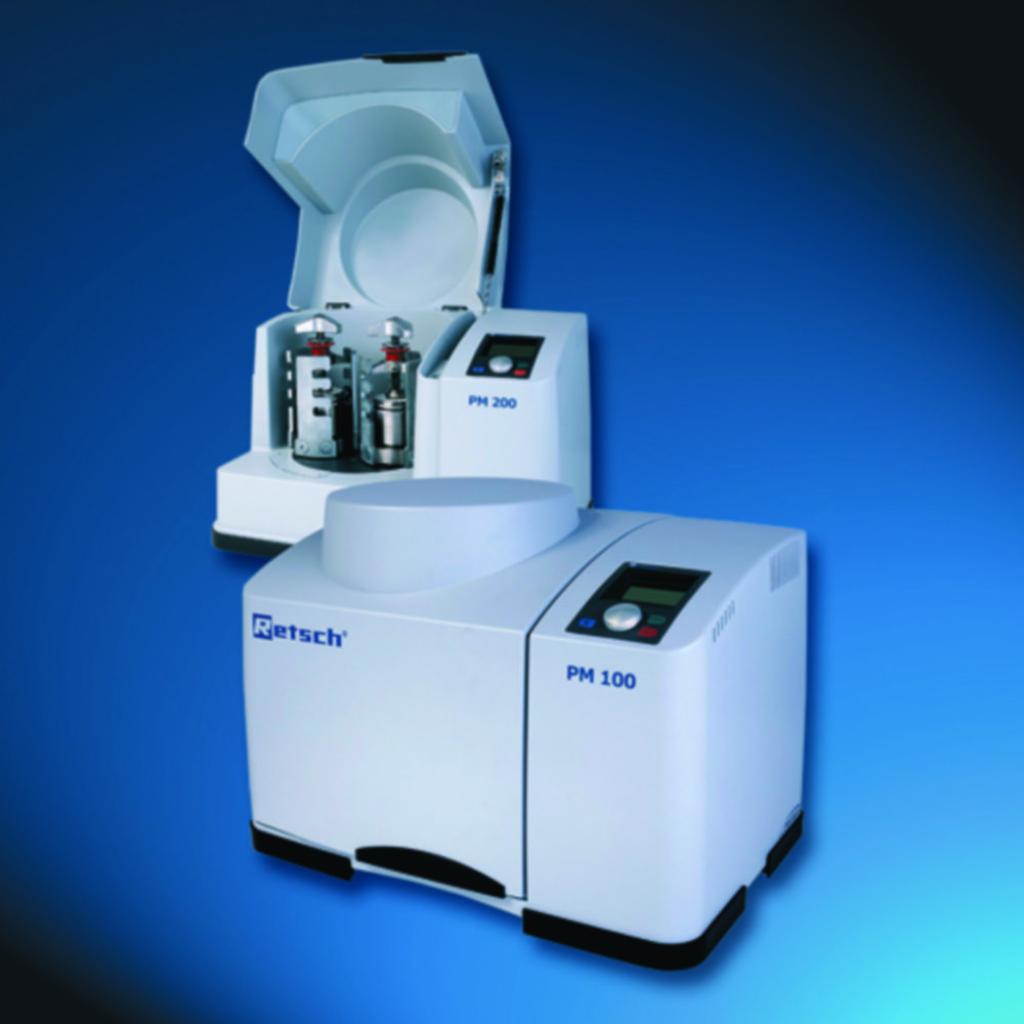

    Planetary Ball Mills PM

    Planetary Ball Mills are suitable for mixing and grinding soft, medium-hard, extremely hard, brittle and fibrous materials. They are used whenever high degrees of fineness down to the submicron range are to be achieved in a very short time. In addition to dry and wet grinding, they are also suitable for colloidal grinding and mechanical alloying. Typical materials are minerals, ores, chemicals, ceramics, soils, household and industrial waste etc.

    Features:
    • Extremely high ultimate fineness down to submicron range

    • 1, 2 or 4 grinding stations

    • Grinding jar volumes from 12ml to 500ml

    • Suitable for long-term trials and continuous use

    • Programmable starting time

    • Power failure back-up ensures storage of remaining grinding time

    • Reproducible results due to digital parameter setting

    • 10 parameter combinations can be stored

    • Single button operation with graphic display

    • Automatic grinding chamber ventilation for cooling the grinding jars

    • Grinding jars in 7 sizes and 8 different materials available


    Supplied with: Planetary Ball Mill only. Grinding jars and grinding balls have to be ordered separately.
    Select Variant
    Producer
    Categories

    Product Variants

    Name BDL Code and Manufacturer Code
    Height ( mm ) Weight ( g ) Type Depth ( mm ) Dimensions (WxDxH) Width ( mm ) Max. speed ( 1/min ) Min. speed ( 1/min ) Rated capacity ( W ) Speed Feed particle size Max. feed particle size ( mm ) Max. feed quantity ( ml ) Feed quantity
    		Availability Quantity in packaging Price excluding VAT
    Obrázek produktové varianty PM 100
    Kód BDL: 9739270
    Code Producer: 20.540.0001
    Height ( mm )
    468 mm
    Weight ( g )
    86 kg
    Type
    PM 100
    Depth ( mm )
    415 mm
    Dimensions (WxDxH)
    630 x 415 x 468 mm
    Width ( mm )
    630 mm
    Max. speed ( 1/min )
    650 1/min
    Min. speed ( 1/min )
    100 1/min
    Rated capacity ( W )
    750 W
    Speed
    100 ... 650 1/min
    Feed particle size
    10 mm
    Max. feed particle size ( mm )
    10 mm
    Max. feed quantity ( ml )
    220 ml
    Feed quantity
    220 ml
    Availability
    Usual delivery 4 weeks
    Quantity in packaging
    1
    225981 Kč
    225981 Kč with BDL plus
    Obrázek produktové varianty PM 200
    Kód BDL: 9739271
    Code Producer: 20.640.0001
    Height ( mm )
    468 mm
    Weight ( g )
    72 kg
    Type
    PM 200
    Depth ( mm )
    415 mm
    Dimensions (WxDxH)
    630 x 415 x 468 mm
    Width ( mm )
    630 mm
    Max. speed ( 1/min )
    650 1/min
    Min. speed ( 1/min )
    100 1/min
    Rated capacity ( W )
    750 W
    Speed
    100 ... 650 1/min
    Feed particle size
    4 mm
    Max. feed particle size ( mm )
    4 mm
    Max. feed quantity ( ml )
    100 ml
    Feed quantity
    100 ml
    Availability
    Usual delivery 4 weeks
    Quantity in packaging
    1
    296950 Kč
    296950 Kč with BDL plus
    Obrázek produktové varianty PM 400
    Kód BDL: 9739274
    Code Producer: 20.535.0001
    Height ( mm )
    1220 mm
    Weight ( g )
    290 kg
    Type
    PM 400
    Depth ( mm )
    780 mm
    Dimensions (WxDxH)
    836 x 780 x 1,220 mm
    Width ( mm )
    836 mm
    Max. speed ( 1/min )
    400 1/min
    Min. speed ( 1/min )
    30 1/min
    Rated capacity ( W )
    1500 W
    Speed
    30 ... 400 1/min
    Feed particle size
    10 mm
    Max. feed particle size ( mm )
    10 mm
    Max. feed quantity ( ml )
    880 ml
    Feed quantity
    880 ml
    Availability
    Usual delivery 4 weeks
    Quantity in packaging
    1
    544008 Kč
    544008 Kč with BDL plus
    Obrázek produktové varianty PM 100 CM
    Kód BDL: 9739275
    Code Producer: 20.520.0001
    Height ( mm )
    468 mm
    Weight ( g )
    86 kg
    Type
    PM 100 CM
    Depth ( mm )
    415 mm
    Dimensions (WxDxH)
    630 x 415 x 468 mm
    Width ( mm )
    630 mm
    Max. speed ( 1/min )
    650 1/min
    Min. speed ( 1/min )
    100 1/min
    Rated capacity ( W )
    750 W
    Speed
    100 ... 650 1/min
    Feed particle size
    10 mm
    Max. feed particle size ( mm )
    10 mm
    Max. feed quantity ( ml )
    220 ml
    Feed quantity
    220 ml
    Availability
    Usual delivery 5 weeks
    Quantity in packaging
    1
    Upon request

    Technical Specifications

    Power supply frequency 50/60 Hz Hz
    Max. voltage 230 V·AC V AC
    Plug type EU
    Power supply 230 V·AC, 50/60 Hz
    Type of auxiliary energy Mains connection
