Planetary ball mill PM 300 Additional Photos

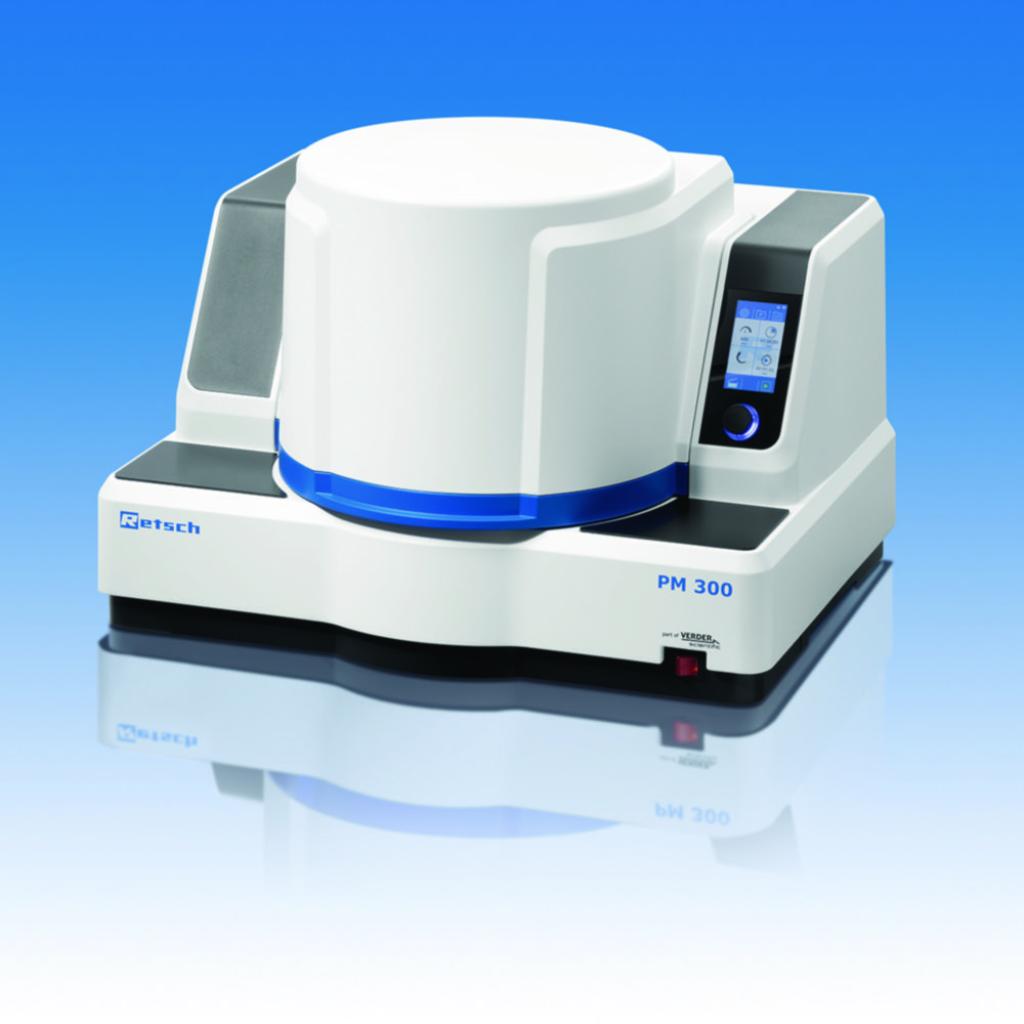

Planetary ball mill PM 300

The Planetary ball mill is a powerful and ergonomic benchtop model with two grinding stations for grinding jar volumes up to 500 ml. For mixing and grinding soft, hard, brittle and fibrous materials. In addition to dry and wet grinding, it is also suitable for mechanochemistry and for ultrafine colloidal grinding on a nanometer scale.

  • Touch display

  • Easy and safe clamping of the grinding jars thanks to lockable sun wheel

  • Safety Slider prevents starting the machine without securely clamped jars

  • Perfect stability on the lab bench thanks to FFCS -technology

  • Loss-free size reduction down to the submicron range

  • Possibility to stack jars enables simultaneous processing of 4 samples

  • Programmable starting time

  • Timer 1 s to 99 h 59 min 59 s

  • Interface USB, RASPI


Please order grinding jars and grinding balls separately.
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Availability Quantity in packaging Price excluding VAT
Obrázek produktové varianty PM 300
Kód BDL: 4691589
Code Producer: 20.570.0001
Availability
Usual delivery 8 weeks
Quantity in packaging
1
493220 Kč
478226 Kč with BDL plus

Technical Specifications

Depth 580 mm mm
Dimensions (WxDxH) 745 x 580 x 525 mm
Feed particle size 10 mm
Feed quantity 440 ml
Power supply frequency 50/60 Hz Hz
Height 525 mm mm
IP code IP 20
Max. feed particle size 10 mm mm
Max. feed quantity 440 ml ml
Max. speed 800 1/min 1/min
Max. voltage 240 V V AC
Min. speed 50 1/min 1/min
Min. voltage 200 V V
Plug type EU
Power supply 200 ... 240 V, 50/60 Hz Hz
Rated capacity 2500 W W
Speed 50 ... 800 1/min
Type PM 300
Type of auxiliary energy Mains connection
Weight 118 kg g
Width 745 mm mm
With timer Yes
