Planetary ball mills PULVERISETTE 7 <i>premium line</i> Additional Photos

Planetary ball mills PULVERISETTE 7 premium line

Ideal for high-performance grinding down into the nano range of hard, medium-hard, brittle and fibrous materials with extremely short grinding times dry, in suspension or in inert gas in the areas of nanotechnology, geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying/activation, pharmaceuticals, chemistry, biology, sample preparation for analysis. They are also the perfect choice for highly efficient mixing and homogenizing.
Grinding bowls and balls are offered in different sizes for optimal adaption to the sample volume and desired final fineness as well as in different materials to provide maximum protection against undesired contamination.
The completely brand new clamping of the grinding bowls, the automatic check of the fastening of the bowls inside the mill, the blockage of the mill in the event of impermissible operating states or imbalance and the automatic bowl detection guarantee maximum safety.
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Availability Quantity in packaging Price excluding VAT
Obrázek produktové varianty [LLG] Planetary ball mills PULVERISETTE 7 premium line
Kód BDL: 6233706
Code Producer: 07.5000.00
Availability
Usual delivery 4 weeks
Quantity in packaging
1
323830 Kč
317094 Kč with BDL plus

Technical Specifications

Depth 580 mm mm
Dimensions (WxDxH) 400 x 580 x 360 mm
Feed particle size 5 mm
Feed quantity 1 ... 60 ml
Power supply frequency 50/60 Hz Hz
Height 360 mm mm
Max. feed particle size 5 mm mm
Max. feed quantity 60 ml ml
Max. speed 2200 1/min 1/min
Max. voltage 230 V V AC
Min. feed quantity 1 ml ml
Min. speed 200 1/min 1/min
Min. voltage 115 V V
Plug type EU
Power supply 115 ... 230 V, 50/60 Hz Hz
Rated capacity 1200 W W
Speed 200 ... 2200 1/min
Type of auxiliary energy Mains connection
Weight 44 kg g
Width 400 mm mm

Photos

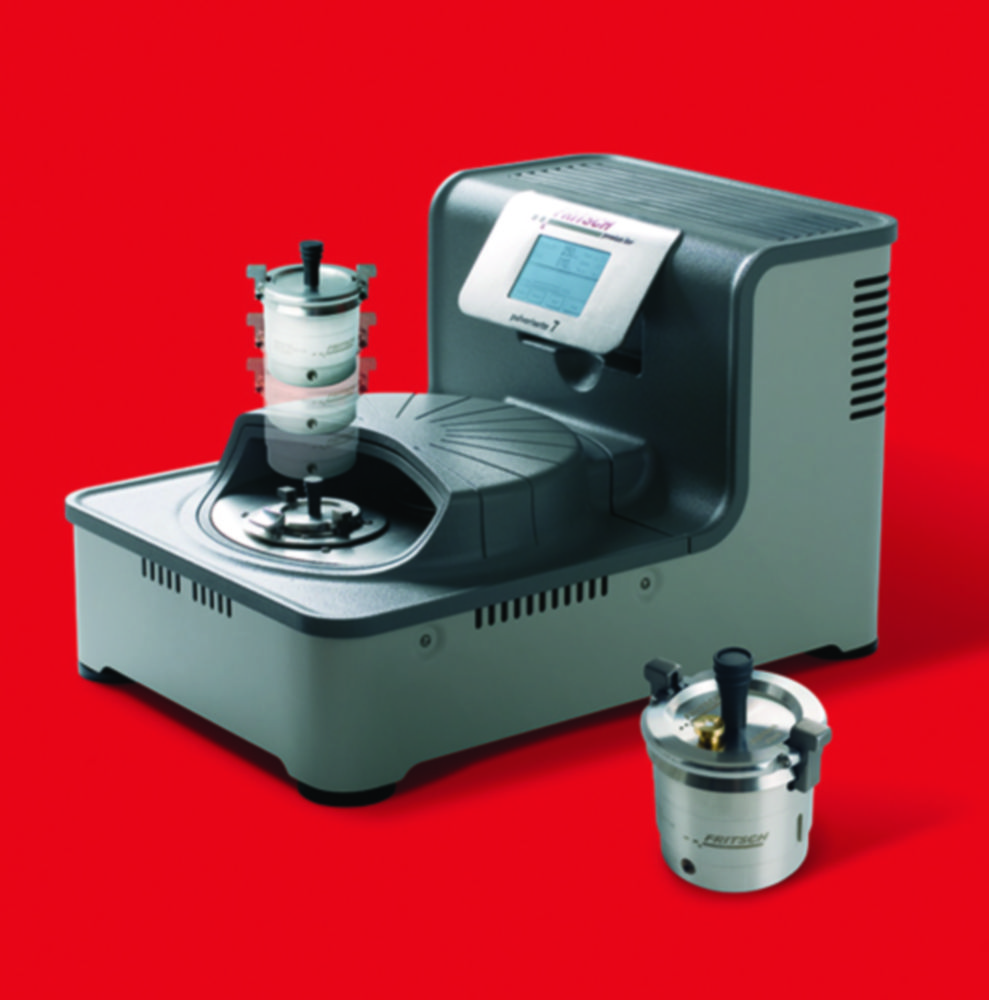

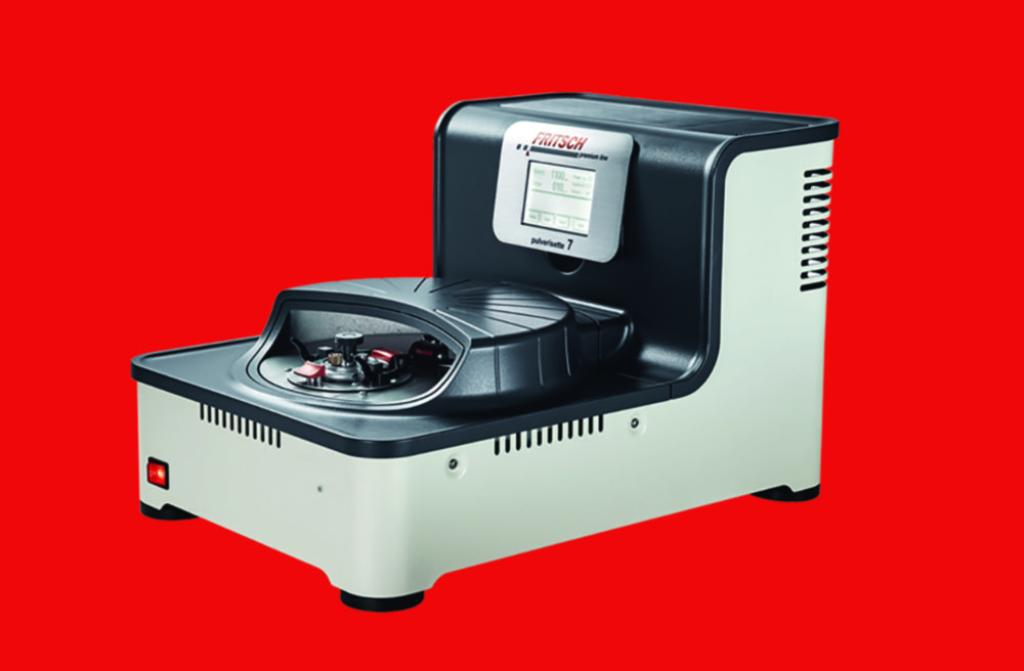

Planetary ball mills PULVERISETTE 7 <i>premium line</i> Planetary ball mills PULVERISETTE 7 <i>premium line</i>
