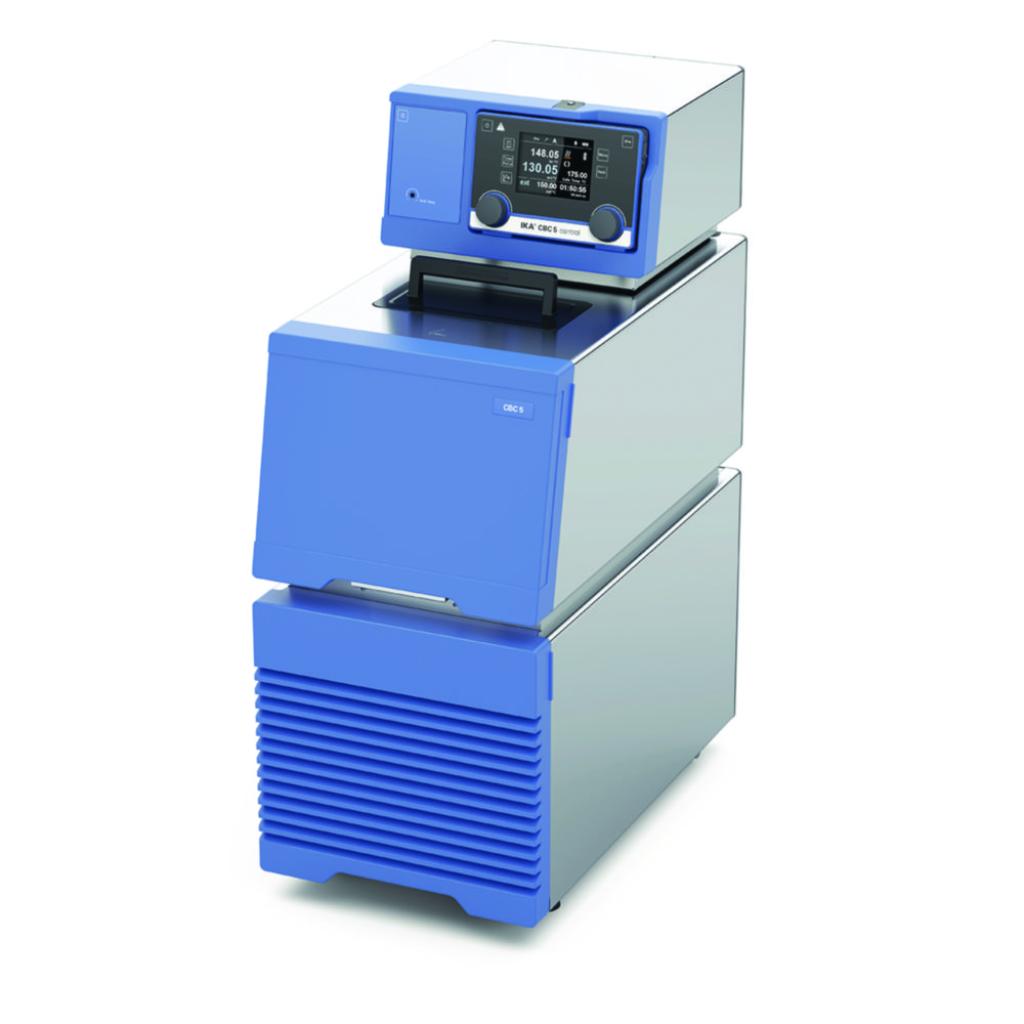

    Refrigerated / heated circulatores CBC 5 basic

    Powerful circulators with strong heating and cooling power for operating temperatures from -25 °C to 200 °C. With speed-controlled pressure and suction pump, suitable for external applications. Very good thermal insulation, therefore particularly fast heating-up times and low heat input at low temperatures. All parameters can be read, monitored and documented via software.

    • Connection for external Pt100 temperature sensor and external solenoid valves via Multi I/O connection

    • Visual and audible warning functions

    • USB/RS 232 interface

    • Safety drain valve

    • Adjustable safety circuit

    • Calibration option

    • With built-in LED display for controlling and monitoring the device parameters
    Select Variant
    Producer
    Categories

    Product Variants

    Name BDL Code and Manufacturer Code
    		Availability Quantity in packaging Price excluding VAT
    Obrázek produktové varianty CBC 5 basic
    Kód BDL: 6289335
    Code Producer: 0004165000
    Availability
    Usual delivery 4 weeks
    Quantity in packaging
    1
    155038 Kč
    139534 Kč with BDL plus

    Technical Specifications

    Cooling capacity at 20 °C 350 W W
    Depth opening 82 mm mm
    Opening (WxD) 172 x 82 mm
    Ext. dim. (WxDxH) 275 x 490 x 690 mm
    Ext. depth 490 mm mm
    Ext. height 690 mm mm
    Ext. width 275 mm mm
    Power supply frequency 50/60 Hz Hz
    Heating capacity 2500 W W
    IP code IP 21
    Max. delivery pressure 0.61 bar bar
    Max. suction pressure 0.45 bar bar
    Max. temperature 200 °C °C
    Max. voltage 230 V V AC
    Max. volume bath 7 l l
    Min. temperature -25 °C °C
    Min. volume bath 5 l l
    Power supply 230 V, 50/60 Hz Hz
    Temperature stability 0,02 K °C
    Temperature -25 ... 200 °C
    Type CBC 5 basic
    Type of auxiliary energy Mains connection
    Type of display LED
    Volume bath 5 ... 7 l
    Weight 45 kg g
    Width opening 172 mm mm
