Steam baths Hydro Additional Photos

Steam baths Hydro

With their stable, low-wear mechanics, the Hydro steam baths ensure particularly quiet operation and reliable continuous operation. For gentle evaporation work from columns, Erlenmeyer flasks, beakers, with 1, 4, 6 or 8 openings. With their precise temperature distribution, they are designed for the needs of biological, medical or biochemical laboratories.
  • With »GFL Technology« for the highest quality, reliability and durability
  • Water level regulator as standard
  • Removable perforated lid made of heat-resistant plastic
  • H 11 V and H 19 V completely made of stainless steel, suitable for the evaporation of aggressive media
Select Variant
Producer
Categories

Product Variants

Name BDL Code and Manufacturer Code
Weight ( g ) Type Opening Ø ( mm ) Capacity Rated capacity ( W ) Heating capacity ( W ) Ext. height ( mm ) Ext. depth ( mm ) Ext. width ( mm ) Ext. dim. (WxDxH) No. of openings
Availability Quantity in packaging Price excluding VAT

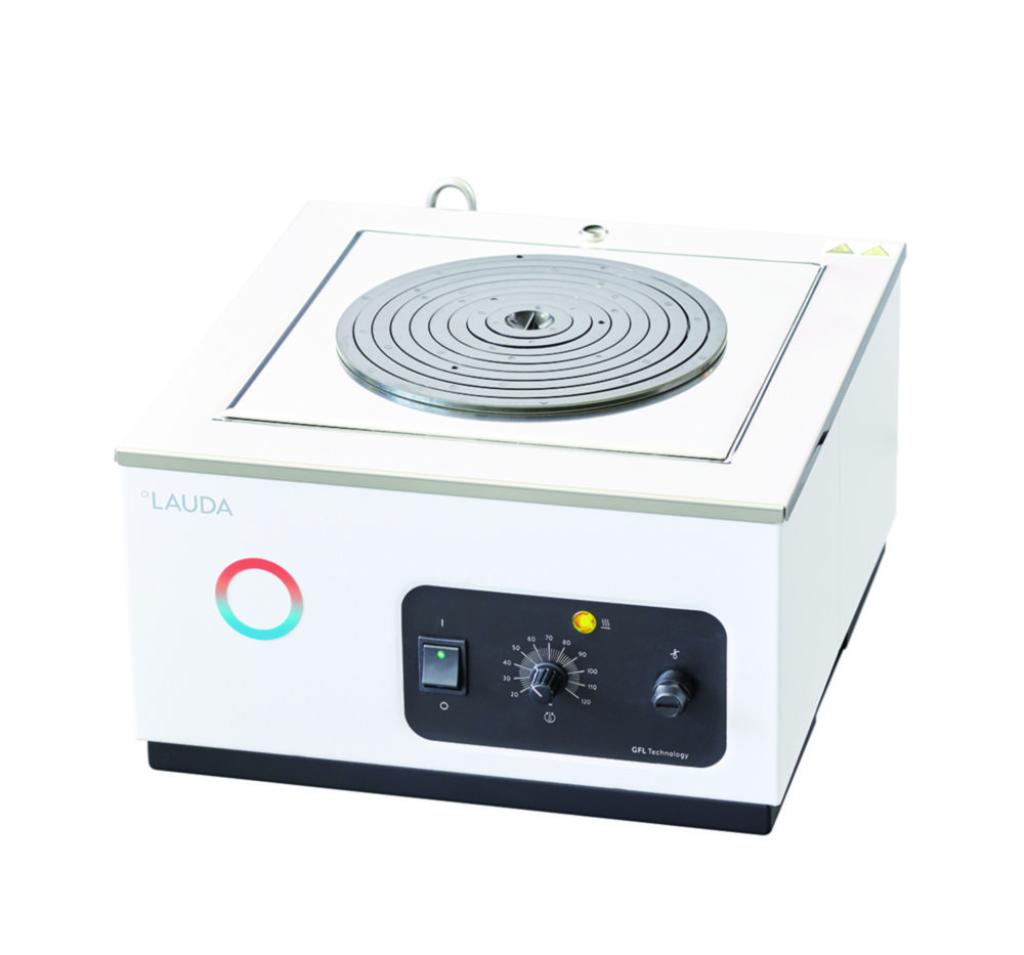

Obrázek produktové varianty H 5 V
Kód BDL: 9695690
Code Producer: L003066
Weight ( g )
9 kg
Type
H 5 V
Opening Ø ( mm )
192 mm
Capacity
5 l
Rated capacity ( W )
1 kW
Heating capacity ( W )
1 kW
Ext. height ( mm )
180 mm
Ext. depth ( mm )
400 mm
Ext. width ( mm )
342 mm
Ext. dim. (WxDxH)
342 x 400 x 180 mm
No. of openings
1
Availability
Usual delivery 5 weeks
Quantity in packaging
1
24258 Kč
21832 Kč with BDL plus

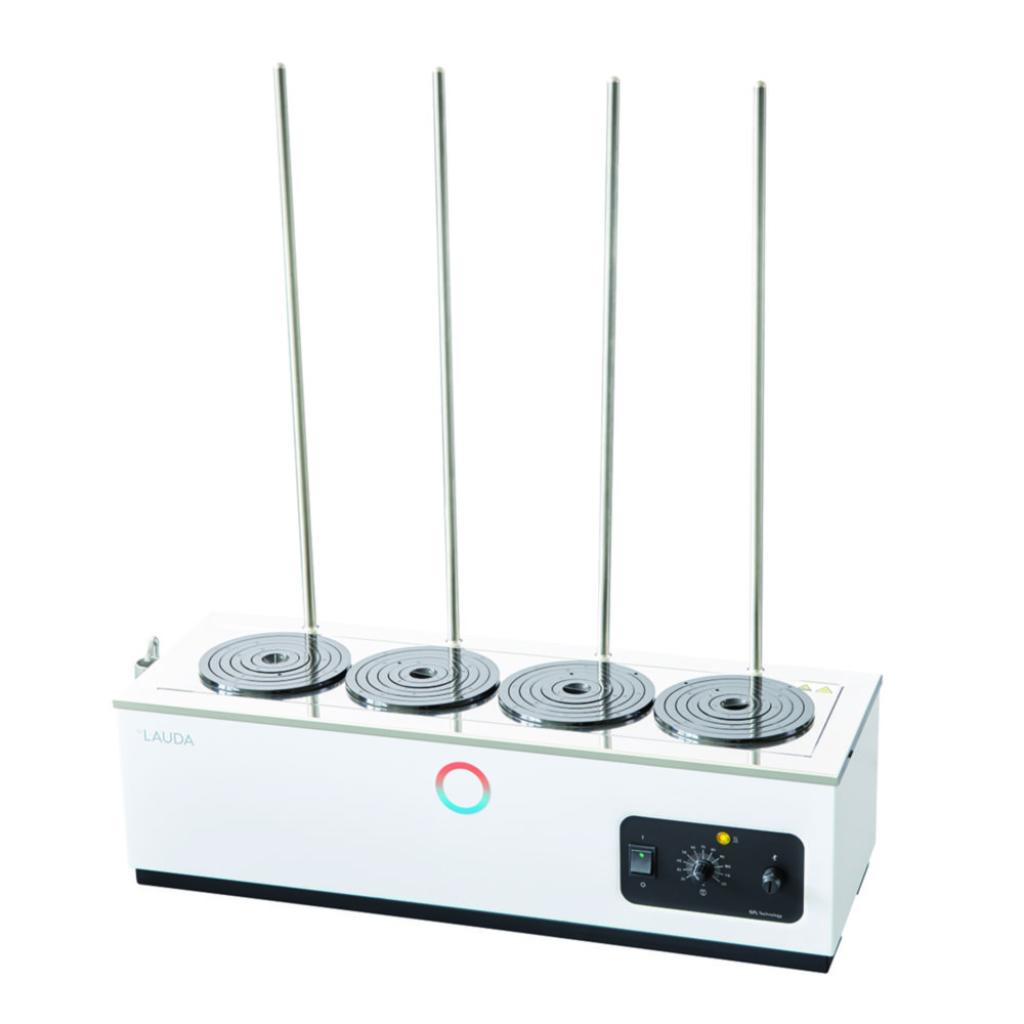

Obrázek produktové varianty H 6 V
Kód BDL: 9695691
Code Producer: L003067
Weight ( g )
12.4 kg
Type
H 6 V
Opening Ø ( mm )
131 mm
Capacity
5.3 l
Rated capacity ( W )
1 kW
Heating capacity ( W )
1 kW
Ext. height ( mm )
192 mm
Ext. depth ( mm )
270 mm
Ext. width ( mm )
1010 mm
Ext. dim. (WxDxH)
1,010 x 270 x 192 mm
No. of openings
4
Availability
Usual delivery 6 weeks
Quantity in packaging
1
31200 Kč
28080 Kč with BDL plus
Obrázek produktové varianty H 9 V
Kód BDL: 9695692
Code Producer: L003068
Weight ( g )
16.2 kg
Type
H 9 V
Opening Ø ( mm )
131 mm
Capacity
8 l
Rated capacity ( W )
1.5 kW
Heating capacity ( W )
1.5 kW
Ext. height ( mm )
192 mm
Ext. depth ( mm )
270 mm
Ext. width ( mm )
1010 mm
Ext. dim. (WxDxH)
1,010 x 270 x 192 mm
No. of openings
6
Availability
Usual delivery 4 weeks
Quantity in packaging
1
36920 Kč
33228 Kč with BDL plus

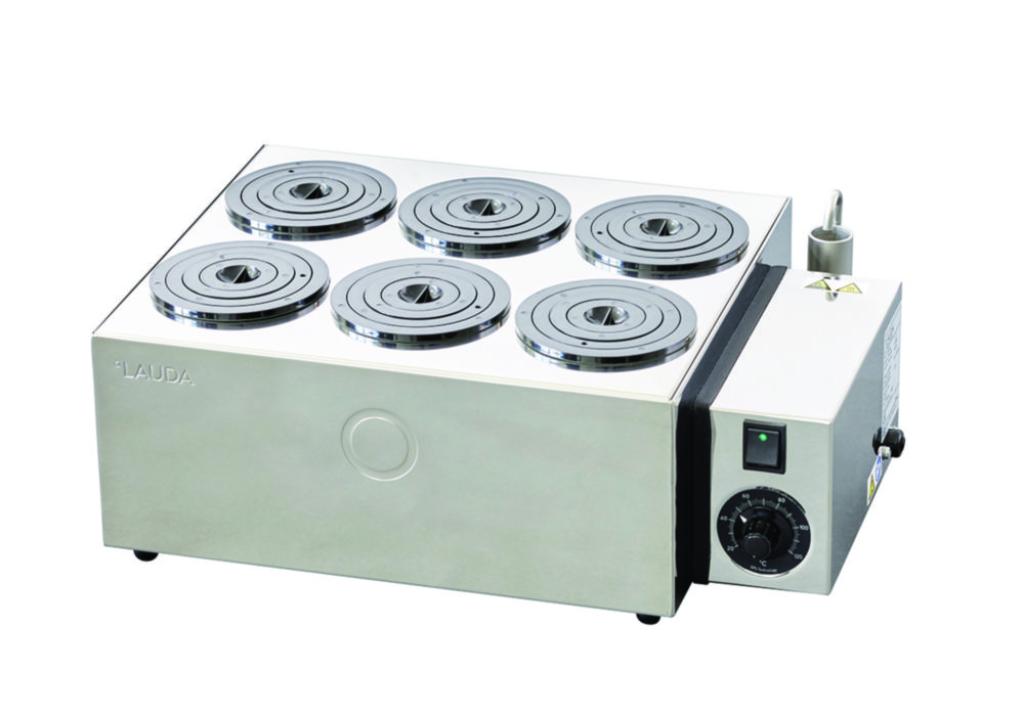

Obrázek produktové varianty H 11 V
Kód BDL: 9695693
Code Producer: L003069
Weight ( g )
5.8 kg
Type
H 11 V
Opening Ø ( mm )
91 mm
Capacity
10.5 l
Rated capacity ( W )
1.5 kW
Heating capacity ( W )
1.5 kW
Ext. height ( mm )
155 mm
Ext. depth ( mm )
300 mm
Ext. width ( mm )
450 mm
Ext. dim. (WxDxH)
450 x 300 x 155 mm
No. of openings
6
Availability
Usual delivery 5 weeks
Quantity in packaging
1
24258 Kč
21832 Kč with BDL plus

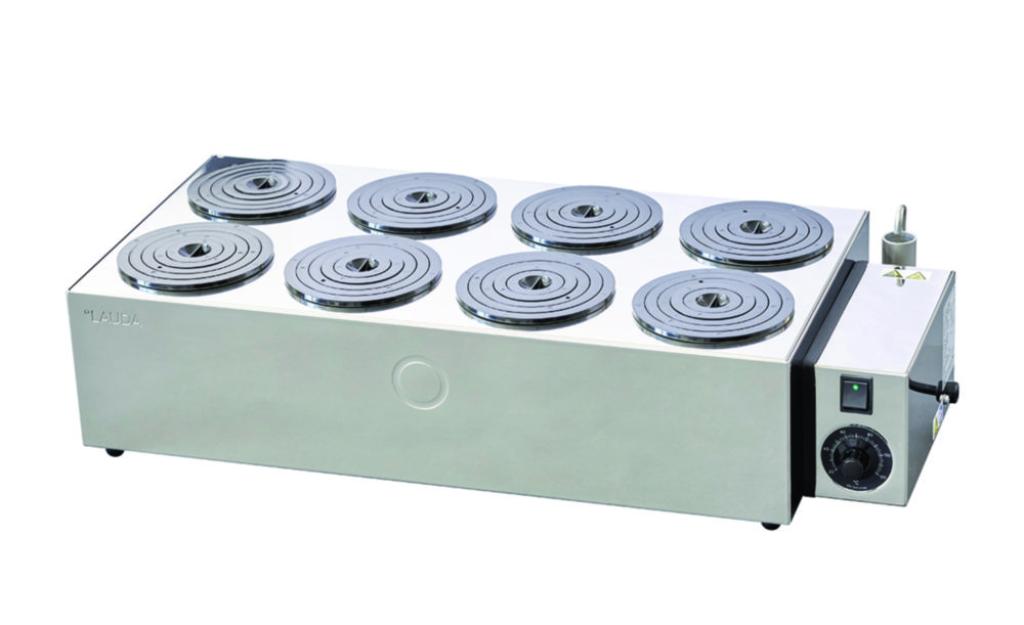

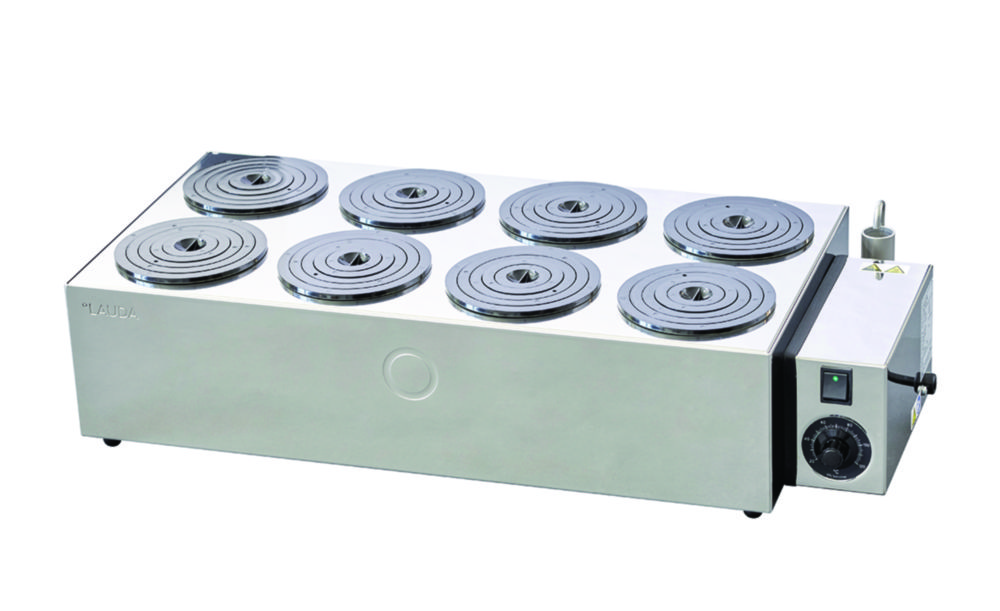

Obrázek produktové varianty H 19 V
Kód BDL: 9695694
Code Producer: L003070
Weight ( g )
8.1 kg
Type
H 19 V
Opening Ø ( mm )
111 mm
Capacity
18.4 l
Rated capacity ( W )
1.5 kW
Heating capacity ( W )
1.5 kW
Ext. height ( mm )
155 mm
Ext. depth ( mm )
300 mm
Ext. width ( mm )
690 mm
Ext. dim. (WxDxH)
690 x 300 x 155 mm
No. of openings
8
Availability
Usual delivery 4 weeks
Quantity in packaging
1
27820 Kč
25038 Kč with BDL plus

Technical Specifications

Display Analogue
Power supply frequency 50/60 Hz Hz
IP code IP 20
Max. temperature 100 °C °C
Max. voltage 230 V V AC
Min. temperature +5 °C °C
Plug type EU
Power supply 230 V, 50/60 Hz Hz
Temperature stability ±3 K °C
Temperature addition RT
Temperature RT+5 ... 100 °C
Type of auxiliary energy Mains connection
Type of display Without display
Type of lid Cover with openings
With circulation No
With stopcock No
